Conversational AI Agent with Blockchain Actions on Rootstock

• Markdown으로 보기이 페이지를 일반 텍스트로 보기

This guide walks through a minimal dApp that connects a conversational AI agent to the Rootstock testnet. Users check token balances and send tRBTC through chat. The agent reads wallet state, keeps conversational context, and submits scoped on-chain actions through defined tools.

The tech stack used in this tutorial is:

• NextJS as the development framework.
• The Rootstock Next Reown starter kit and Wagmi to handle wallet connections and blockchain interactions.
• Groq’s LLM API, for the natural language interface.
• Shadcn as UI library.

What you'll learn

By the end of this tutorial, you will have:

• A connected wallet UI running on Rootstock testnet
• A chat interface powered by an LLM (via Groq SDK)
• A fully functioning AI agent that can interpret user intent and call blockchain methods accordingly

Next you wire AI tooling and Rootstock testnet access into a single-page app with wallet connection and scoped transaction tools.

Prerequisites

Ensure you have the following installed:

• Node.js (v18+)
• Git
• A browser wallet like MetaMask connected to the Rootstock Testnet
• Some basic familiarity with Javascript/Typescript and smart contract interaction

Project Setup

Clone the Rootstock Reown & Next Starter Kit. Reown (previously WalletConnect) is a really popular tool in the web3 ecosystem that abstracts the wallet connection and management in decentralized applications (dApps). This starter kit comes already configured with Wagmi, Shadcn and Rootstock networks - testnet and mainnet.

Clone the project:

git clone https://github.com/rsksmart/reown-next-starter-kit.git
cd reown-next-starter-kit

Proceed to install dependencies:

npm install

# or

bun install

Want to dive right in?

Find the full source code in the 🔗 AI Agents Rootstock GitHub repo Feel free to clone it, fork it, and build further on it.

Set up Environment Variables

Create a .env.local file and set your environment variables based on the .env.example file. You will find four of them:

• NEXT_PUBLIC_PROJECT_ID from Reown. Get it on Reown Cloud.
• NEXT_PUBLIC_RPC_MAINNET is the mainnet RPC URL. Get it on the RPC API service.
• NEXT_PUBLIC_RPC_TESTNET is the testnet RPC URL, also available at RPC API service.
• GROQ_API_KEY that you can get at Groq’s website for free.

When the .env.local file is ready then you can test if everything is on point by running the project.

npm run dev

# or

bun dev

If there is no error and the app is running correctly on the server, we are ready to start the project.

Define the AI Agent UI

To set up the AI agent's user interface, we'll focus solely on the visual layer. Since Shadcn is already configured, there's no need to go in-depth here. Update the page.tsx file with the following code:

import { ConnectButton } from "@/components/ConnectButton";
import { Card, CardContent, CardHeader, CardTitle } from "@/components/ui/card";
import Footer from "@/components/Footer";
import { Send } from "lucide-react";
import { Input } from "@/components/ui/input";
import { Button } from "@/components/ui/button";
import Image from "next/image";

export default function Home() {
  return (
    <main
      style={{
        backgroundImage: "url(/img/background.png)",
        backgroundSize: "cover",
        backgroundPosition: "center",
        backgroundRepeat: "no-repeat",
      }}
      className="flex min-h-screen flex-col items-center justify-between"
    >
      <div className="w-full max-w-4xl grow flex flex-col items-center justify-around gap-6 px-4">
        <Image
          src={"/img/rsk.png"}
          alt="Rootstock Logo"
          width={300}
          height={100}
          priority
        />
        <Card className="w-full">
          <CardHeader className="flex flex-row items-center justify-between">
            <CardTitle>Rootstock AI Agent</CardTitle>
            <ConnectButton />
          </CardHeader>
          <CardContent>
            <div className="space-y-4 mb-4 h-[400px] overflow-y-auto p-2 border rounded-md">
              {/* Messages */}
            </div>
            <div className="flex gap-2">
              <Input placeholder="Ask about Rootstock or perform actions..." />
              <Button>
                <Send className="h-4 w-4" />
              </Button>
            </div>
          </CardContent>
        </Card>
      </div>
      <Footer />
    </main>
  );
}


Module not found: Can't resolve '@/components/ui/input'

If you get the error: Module not found: Can't resolve '@/components/ui/input'

For NPM:

npx shadcn@latest add input

If using BUN:

bunx --bun shadcn@latest add input

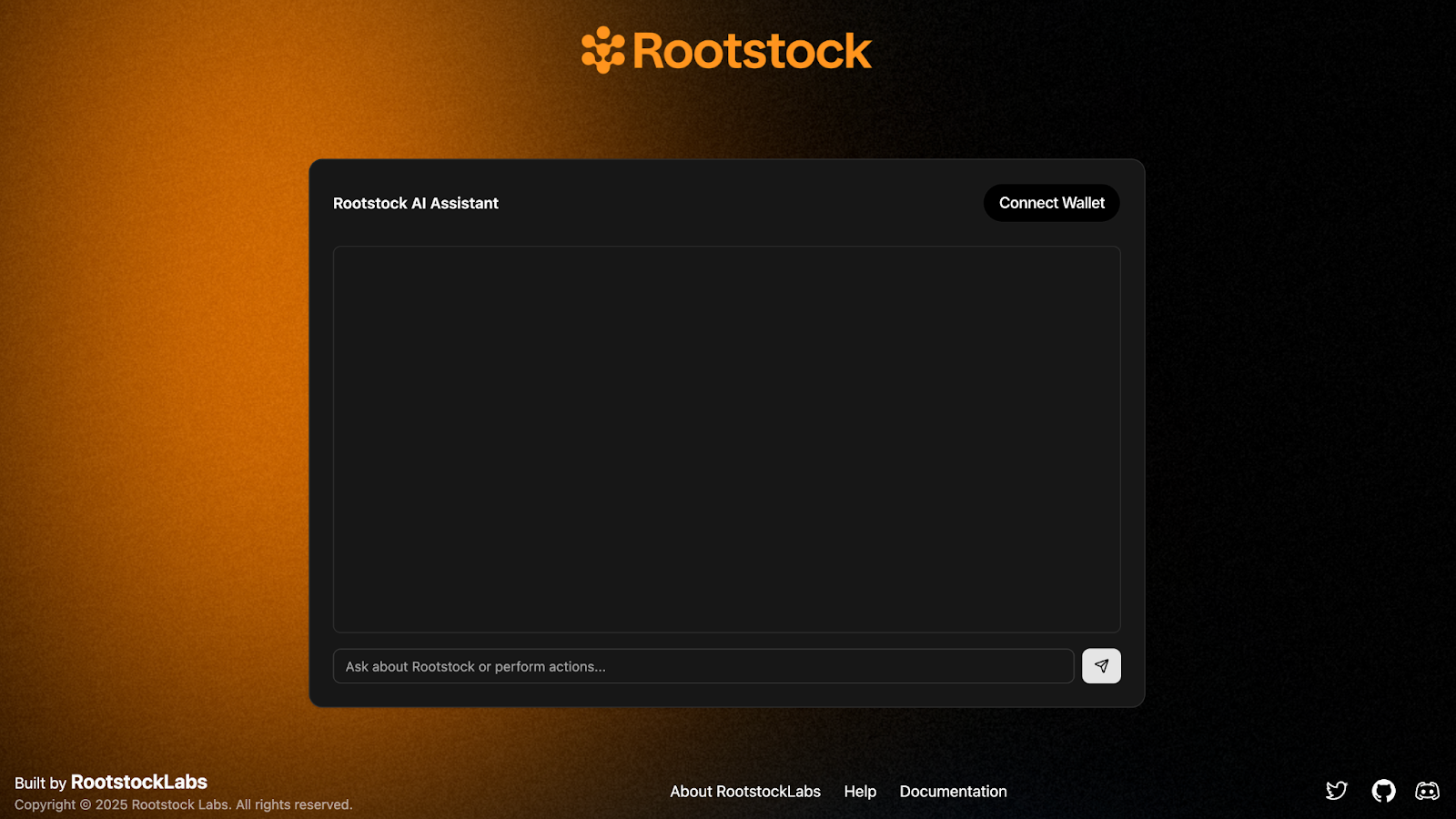

Verify that the development server is running:

Handling Logic

In this section, we will create the logic for managing messages, and enable dynamic interaction between the user and the AI agent, this means handling messages from the user, triggering an AI response, and rendering the chat conversation in real-time.

Message Management

We will create the logic to manage messages. Start by creating a pair of useState to store all of the messages from the chat in the page.tsx file:

const [messages, setMessages] = useState<{ role: string; content: React.ReactNode }[]>([
    {
      role: "agent",
      content: "Hello! I can help you interact with the Rootstock testnet. What would you like to do?",
    },
  ])

Note that we are storing in the useState an array of objects and each of these objects contain two attributes: role and content. The role defines whether the message is from the agent or from the user and the content is the message sent by any of the two roles.

Create a useState for storing the input value:

const [input, setInput] = useState("")

Next, we are going to create a function called handleSend that will manage the messages in the chat. The functions looks something like this:

const handleSend = async () => {
    if (!input.trim()) return

    const userMessage = input
    setInput("")

    // Messsage from bot telling user is processing the request
    const processingMessage = {
      role: "bot" as const,
      content: "Processing your request...",
    };

    const newMessages = [...messages, userMessage, processingMessage];

    // Add user message to chat
    setMessages(newMessages);

    try {
      // Process the message with AI and give an answer
    } catch (error) {
	// Handle error in request
      setMessages([
        ...newMessages.slice(0, -1),
        {
          role: "bot",
          content: `Error: ${
            error instanceof Error ? error.message : "Operation failed"
          }`,
        },
      ]);
    }
  }

Update the html with these functions and the whole component should look like this:

export default function Home() {
  const [messages, setMessages] = useState<{ role: string; content: string }[]>([
    {
      role: "agent",
      content: "Hello! I can help you interact with the Rootstock testnet. What would you like to do?",
    },
  ])
  const [input, setInput] = useState("")

  const handleSend = async () => {
    if (!input.trim()) return

    const userMessage = input
    setInput("")

    // Messsage from bot telling user is processing the request
    const processingMessage = {
      role: "bot" as const,
      content: "Processing your request...",
    };
    const newMessages = [...messages, userMessage, processingMessage];

    // Add user message to chat
    setMessages(newMessages);

    try {
      // Process the message with AI and give an answer
    } catch (error) {
	// Handle error in request
      setMessages([
        ...newMessages.slice(0, -1),
        {
          role: "bot",
          content: `Error: ${
            error instanceof Error ? error.message : "Operation failed"
          }`,
        },
      ]);
    }
  }

  return (
    <main
      style={{
        backgroundImage: "url(/img/background.png)",
        backgroundSize: "cover",
        backgroundPosition: "center",
        backgroundRepeat: "no-repeat",
      }}
      className="flex min-h-screen flex-col items-center justify-between"
    >
      <div className="w-full max-w-4xl grow flex flex-col items-center justify-around gap-6 px-4">
        <Image
          src={"/img/rsk.png"}
          alt="Rootstock Logo"
          width={300}
          height={100}
          priority
        />
        <Card className="w-full">
          <CardHeader className="flex flex-row items-center justify-between">
            <CardTitle>Rootstock AI Agent</CardTitle>
            <ConnectButton />
          </CardHeader>
          <CardContent>
            <div className="space-y-4 mb-4 h-[400px] overflow-y-auto p-2 border rounded-md">
            {messages.map((message, index) => (
                <div key={index} className={`flex ${message.role === "user" ? "justify-end" : "justify-start"}`}>
                  <div
                    className={`max-w-[80%] rounded-lg px-4 py-2 ${
                      message.role === "user" ? "bg-primary text-primary-foreground" : "bg-muted"
                    }`}
                  >
                    <p className="whitespace-pre-wrap">{message.content}</p>
                  </div>
                </div>
              ))}
            </div>
           <div className="flex gap-2">
            	<Input
                placeholder="Ask about Rootstock or perform actions..."
                value={input}
                onChange={(e) => setInput(e.target.value)}
                onKeyDown={(e) => {
                  if (e.key === "Enter" && !e.shiftKey) {
                    e.preventDefault()
                    handleSend()
                  }
                }}
              />
              <Button onClick={handleSend}>
                <Send className="h-4 w-4" />
              </Button>
            </div>
          </CardContent>
        </Card>
      </div>
      <Footer />
    </main>
  );
}

Endpoint calling Groq API

Once this is working, you now have a basic chat interface where users can type messages and eventually receive AI-powered responses. This is the core layout that we’ll be building the rest of the experience on top of.

The chat starts with a welcome message; new messages are added as the conversation progresses. User messages are pushed to the chat, and the Groq API generates a response. Blockchain actions like checking balances and sending testnet tokens will be integrated, all through natural language.

The next step is enabling dynamic interaction between the user and the AI agent. This means handling messages from the user, triggering an AI response, and rendering the chat conversation in real-time. To enable our AI agent to understand user intent and respond intelligently (even triggering blockchain actions), we need to create a backend API route. This route will act as the brain of our app, powered by Groq, which will generate answers based on user questions and wallet data.

1. Create a new file called app/api/ai/route.ts. This will be our AI handler endpoint that receives messages, builds a context-aware prompt, and sends it to Groq's API.

import { NextResponse } from "next/server";
import { Groq } from "groq-sdk";

const groqClient = new Groq({
  apiKey: process.env.GROQ_API_KEY as string,
});

2. Handling the incoming POST request

export async function POST(req: Request) {
  try {
    const {
      type,
      data,
      question,
      address,
      messageHistory = [],
    } = await req.json();

This is the main function that will be triggered when the frontend sends a message. It expects a JSON payload with:

• type: The type of action (e.g., chat, balance, transfer)
• data: The wallet data or portfolio info
• question: What the user asked
• address: The user's wallet address
• messageHistory: Previous messages from the conversation (optional, but used for context)

3. Build the user prompt

const prompt = createChatPrompt(data, question, address);

We call a helper function to construct a structured prompt that includes the user’s wallet data, their question, and some formatting instructions:

function createChatPrompt(userContext: any, question: string, address: string) {...}

This combines the user’s question and wallet data into a structured, clear prompt for the LLM. It also reminds the model that we’re using testnet tokens only, and it should convert token values from wei.

4. Construct the full message history:

const limitedHistory = messageHistory.slice(-10);

const messages = [
  {
    role: "system",
    content: getSystemPrompt(),
  },
];

The getSystemPrompt function defines how the agent should behave: friendly, brief, and focused on Rootstock testnet. It gives the LLM structure so that it can consistently produce helpful and well-formatted answers.

function getSystemPrompt() {...}

We take the last 10 messages from the conversation (for context) and add a system prompt. This tells the model who it is (a Rootstock agent) and how it should behave.

if (limitedHistory && limitedHistory.length > 0) {
  limitedHistory.forEach((msg) => {
    messages.push({
      role: msg.role === "bot" ? "assistant" : "user",
      content: typeof msg.content === "string" ? msg.content : "User input",
    });
  });
}

messages.push({
  role: "user",
  content: prompt,
});

5. Send the request to Groq

const response = await groqClient.chat.completions.create({
      model: "llama3-70b-8192",
      max_tokens: 2024,
      messages: messages as any,
      temperature: 0.7,
      tools: [
        {
          type: "function",
          function: {
            name: "transfer",
            description:
              "Transfer tokens from the user's wallet to another address",
            parameters: {
              type: "object",
              properties: {
                address: {
                  type: "string",
                  description: "Recipient wallet address",
                },
                token1: {
                  type: "string",
                  description:
                    "Token symbol to transfer (e.g., TRBTC, DOC, RIF)",
                },
                amount: {
                  type: "number",
                  description: "Amount of tokens to transfer",
                },
              },
              required: ["address", "token1", "amount"],
            },
          },
        },
        {
          type: "function",
          function: {
            name: "balance",
            description: "Check token balance for an address",
            parameters: {
              type: "object",
              properties: {
                address: {
                  type: "string",
                  description:
                    "Wallet address to check (defaults to user's wallet if empty)",
                },
                token1: {
                  type: "string",
                  description:
                    "Token symbol to check balance for (e.g., TRBTC, DOC, RIF)",
                },
              },
              required: ["token1"],
            },
          },
        },
      ],
      tool_choice: "auto",
    });

Here we call Groq’s chat API with the message history and tool definitions. These tools represent on-chain actions Groq can “call”, such as sending tokens or checking balances. When Groq detects that a function is needed, it will return a function call instead of a plain text answer.

6. Handle function calls (if any)

const aiMessage = response.choices[0].message;
const toolCalls = aiMessage.tool_calls;

if (toolCalls && toolCalls.length > 0) {
  const toolCall = toolCalls[0];
  const functionName = toolCall.function.name;
  const functionArgs = JSON.parse(toolCall.function.arguments);

  return NextResponse.json({
    analysis: aiMessage.content || "Processing your request...",
    type,
    functionCall: {
      name: functionName,
      arguments: functionArgs,
    },
  });
}

If the AI response includes a tool call, we extract the name and arguments and return it to the frontend so it can actually perform the blockchain action.

7. Handle regular responses if there’s no function calls:

return NextResponse.json({
  analysis: aiMessage.content,
  type,
});

And also add error handling:

} catch (error) {
  console.error("AI Analysis Error:", error);
  return NextResponse.json({ error: "Analysis failed" }, { status: 500 });
}

With this route in place, our AI agent now has the ability to:

• Understand the user's question in context
• Know the user’s wallet data and portfolio
• Respond conversationally
• Decide when to suggest or trigger a function like balance or transfer

Now we are ready to integrate the frontend.

Integrate endpoint with UI

Previously, we had a Home component that could:

• Send user messages
• Show a "Processing..." bot message
• Display AI responses (placeholder)

Now, we’re turning that into a smart chat assistant that can:

• Interpret user input via a Groq-powered API
• Understand commands like "Send 0.1 tRBTC to 0x..." or "What's my token balance?
• Use the connected wallet (via Reown AppKit) to read balances and send tokens.

We'll go from a simple message handler to a fully interactive Rootstock AI agent with wallet connection, token transfers, and balance checks.

1. Import the necessary hooks and tools from Reown AppKit and Wagmi.

import { useAppKitAccount } from "@reown/appkit/react";
import { useConfig } from "wagmi";

Then add this inside the component:

const { address, isConnected } = useAppKitAccount();
const config = useConfig();

Also add a useState for managing the loading state:

const [isLoading, setIsLoading] = useState(false);

2. Add Token Transfer and Balance Handling Functions

Token transfer

const handleTransfer = async (data: { token1: string; address: string; amount: number }) => {
  const tokenAddress = data.token1.toLowerCase() === "trbtc"
    ? "trbtc"
    : await findToken(data.token1);

  if (!tokenAddress) throw new Error("Token not found");

  if (tokenAddress === "trbtc") {
    return await sendTransaction(config, {
      to: data.address as `0x${string}`,
      value: parseEther(data.amount.toString()),
    });
  } else {
    return await writeContract(config, {
      abi: erc20Abi,
      address: tokenAddress as `0x${string}`,
      functionName: "transfer",
      args: [data.address as `0x${string}`, BigInt(data.amount)],
    });
  }
};

Token balance

const handleBalance = async (data: any) => {
  const tokenAdd = data.token1.toLowerCase() === "trbtc"
    ? "trbtc"
    : await findToken(data.token1);

  const acc = isAddress(data.address) ? data.address : address;

  if (tokenAdd === "trbtc") {
    const res = await getBalance(config, { address: acc });
    return { displayValue: Number(res.value) / 10e18, symbol: "tRBTC" };
  } else {
    const res = await readContract(config, {
      abi: erc20Abi,
      address: checksumAddress(tokenAdd as `0x${string}`),
      functionName: "balanceOf",
      args: [acc],
    });
    return { displayValue: Number(res) / 10e18, symbol: data.token1 };
  }
};

3. Refactor handleSend to Process AI Function Calls

Enhance the handleSend function so it calls to the /api/ai endpoint and handles any functionCall responses.

Here’s the full updated logic:

const handleSend = async () => {
  if (!input.trim()) return;

  const userMessage = { role: "user", content: input };
  setInput("");
  setIsLoading(true);

  const processingMessage = { role: "bot", content: "Processing your request..." };
  const newMessages = [...messages, userMessage, processingMessage];

  if (!isConnected) {
    setMessages([
      ...newMessages.slice(0, -1),
      { role: "bot", content: "Please connect your wallet to perform this action." },
    ]);
    setIsLoading(false);
    return;
  }

  setMessages(newMessages);

  try {
    const messageHistory = messages.map((msg) => ({
      role: msg.role,
      content: typeof msg.content === "string" ? msg.content : "Content not available as string",
    }));

    const response = await fetch("/api/ai", {
      method: "POST",
      headers: { "Content-Type": "application/json" },
      body: JSON.stringify({ type: "chat", question: input, address, messageHistory }),
    });

    const data = await response.json();

    if (data?.functionCall) {
      const { name, arguments: args } = data.functionCall;

      switch (name) {
        case "transfer":
          const tx = await handleTransfer(args);
          setMessages([
            ...newMessages.slice(0, -1),
            {
              role: "bot",
              content: (
                <a href={`${BLOCK_EXPLORER_URL}${tx}`} target="_blank" rel="noopener noreferrer" className="text-blue-500 hover:text-blue-600 flex items-center gap-1">
                  Transaction: {tx.slice(0, 6)}...{tx.slice(-4)}
                  <ExternalLink size={16} />
                </a>
              ),
            },
          ]);
          break;

        case "balance":
          const balance = await handleBalance(args);
          setMessages([
            ...newMessages.slice(0, -1),
            { role: "bot", content: <div>Balance: {balance.displayValue} {balance.symbol}</div> },
          ]);
          break;

        default:
          setMessages([
            ...newMessages.slice(0, -1),
            {
              role: "bot",
              content: (
                <div className="markdown-content space-y-4">
                  <ReactMarkdown>
                    {data.analysis || "No information available for this query."}
                  </ReactMarkdown>
                </div>
              ),
            },
          ]);
      }
    } else {
      setMessages([
        ...newMessages.slice(0, -1),
        {
          role: "bot",
          content: (
            <div className="markdown-content space-y-4">
              <ReactMarkdown>
                {data.analysis || "No information available for this query."}
              </ReactMarkdown>
            </div>
          ),
        },
      ]);
    }
  } catch (error) {
    setMessages([
      ...newMessages.slice(0, -1),
      {
        role: "bot",
        content: `Error: ${error instanceof Error ? error.message : "Operation failed"}`,
      },
    ]);
  } finally {
    setIsLoading(false);
  }
};

4. Add Autoscroll to the Message View

const containerRef = useRef<HTMLDivElement>(null);

useEffect(() => {
  if (containerRef.current) {
    containerRef.current.scrollTop = containerRef.current.scrollHeight;
  }
}, [messages]);
Apply it to the scrollable chat div:

<div className="space-y-4 mb-4 h-[400px] overflow-y-auto p-2 border rounded-md" ref={containerRef}>

Add loading states to input and button

<Input
     placeholder="Ask about Rootstock or perform actions..."
     value={input}
     onChange={(e) => setInput(e.target.value)}
     onKeyDown={(e) => {
         if (e.key === "Enter" && !e.shiftKey) {
              e.preventDefault();
              handleSend();
         }
      }}
      disabled={isLoading}
 />
 <Button onClick={handleSend} disabled={isLoading}>
     {isLoading ? (
          <Loader2 className="h-4 w-4 animate-spin" />
       ) : (
           <Send className="h-4 w-4" />
      )}
  </Button>


Create a `src/lib/utils.ts` file and include this `isValidWalletAddress` and `findToken` functions:

```js
export function isValidWalletAddress(address: string): boolean {
	const regex = /^(0x)?[0-9a-fA-F]{40}$/;

	return regex.test(address);
}

export async function findToken(query: string): Promise<string | null> {
	try {
		const tokenLowerCase = query.toLowerCase();

		// Make API call to Blockscout
		const response = await fetch(
			`https://rootstock-testnet.blockscout.com/api/v2/tokens?q=${tokenLowerCase}&type=ERC-20`
		);

		if (!response.ok) {
			throw new Error(`API call failed with status: ${response.status}`);
		}

		const data = await response.json();

		// Check if we have any results
		if (data.items && data.items.length > 0) {
			// Return the address of the first token found
			return data.items[0].address;
		}

		// Return null if no tokens found
		return null;
	} catch (error) {
		console.error("Error fetching token:", error);
		return null;
	}
}

7. Create a src/lib/constants.ts and include the BLOCK_EXPLORER_URL constant:

export const BLOCK_EXPLORER_URL = "https://explorer.testnet.rootstock.io/tx/";

Interact with the App

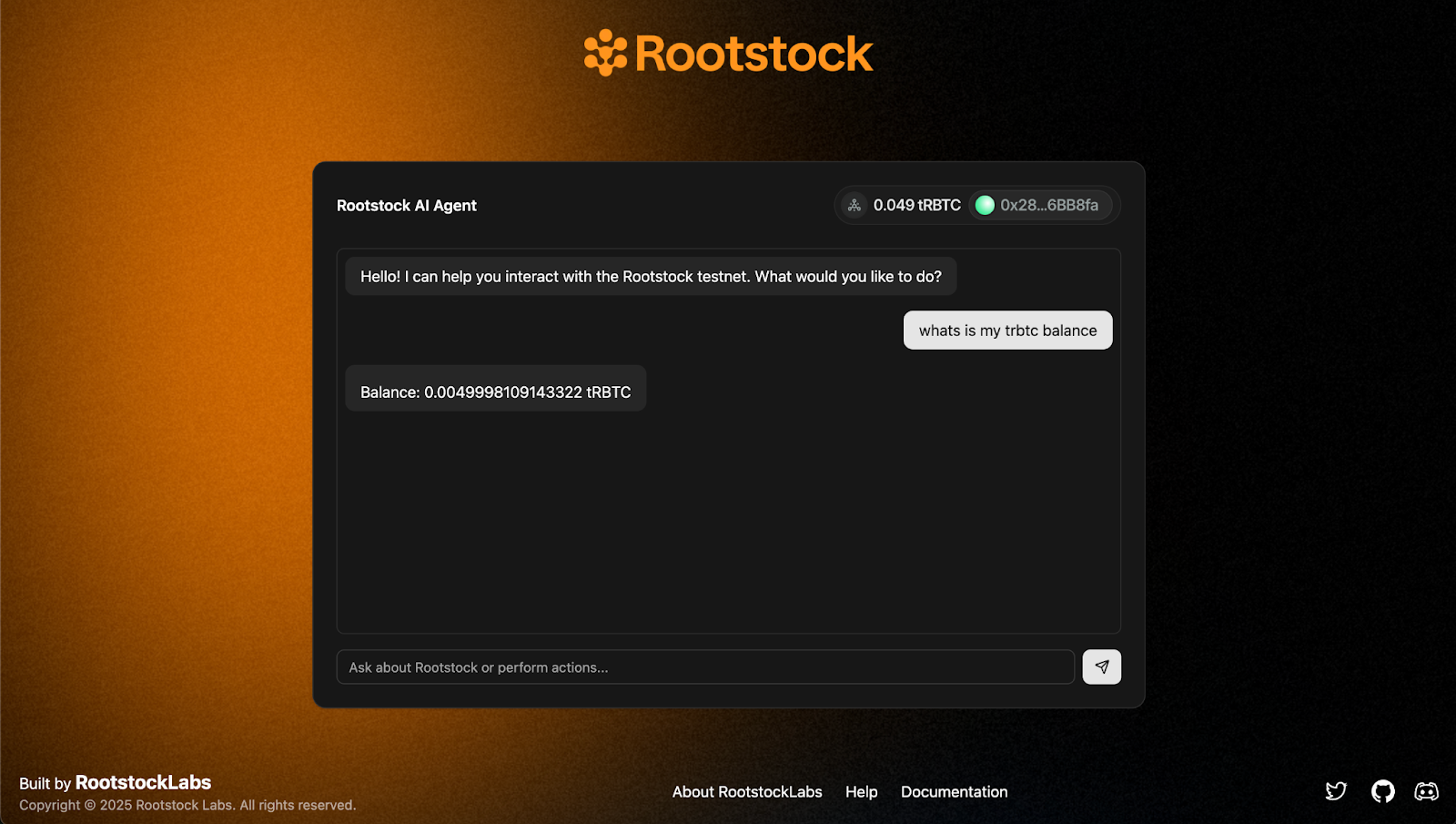

1. Query tRBTC balance

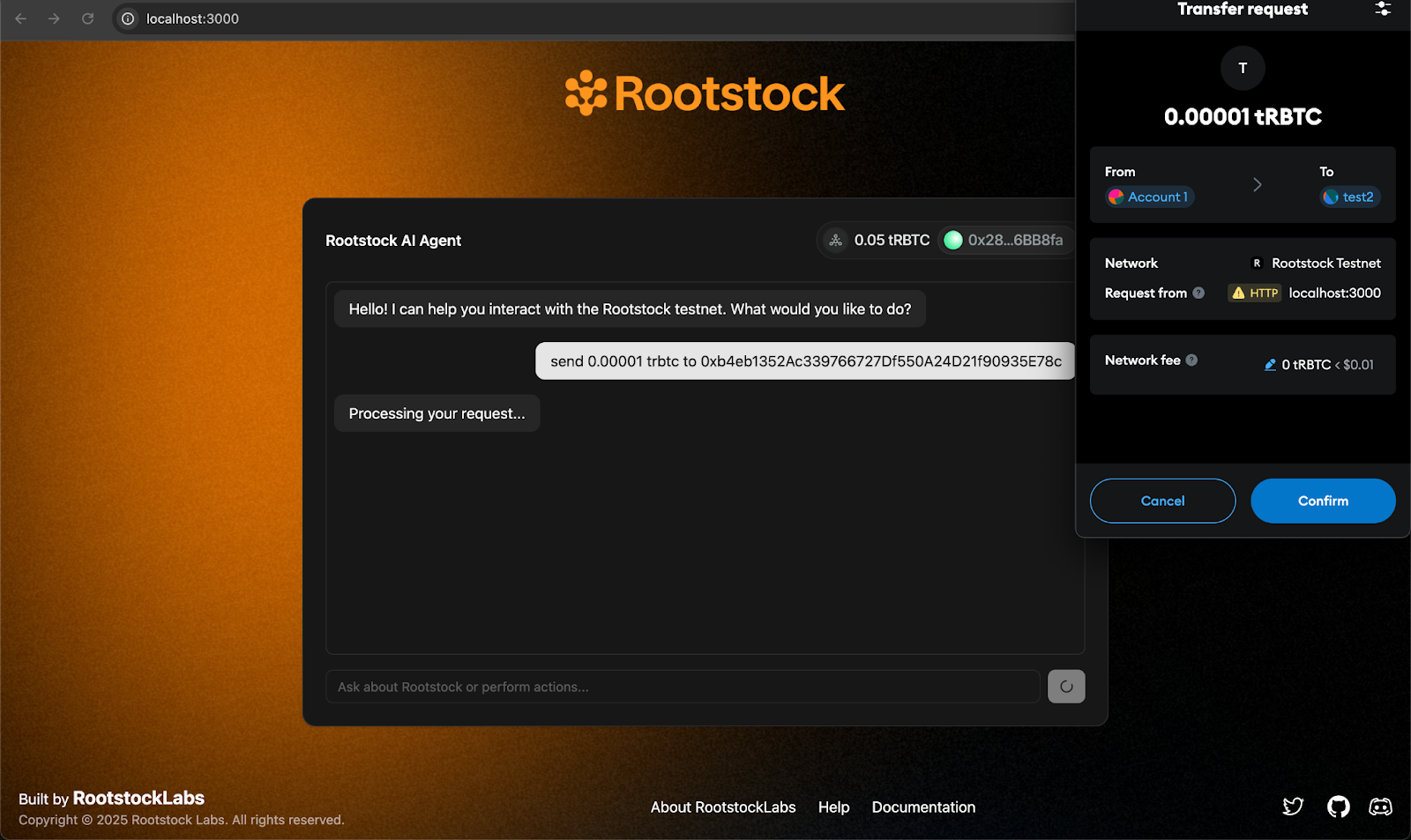

2. Send a transaction

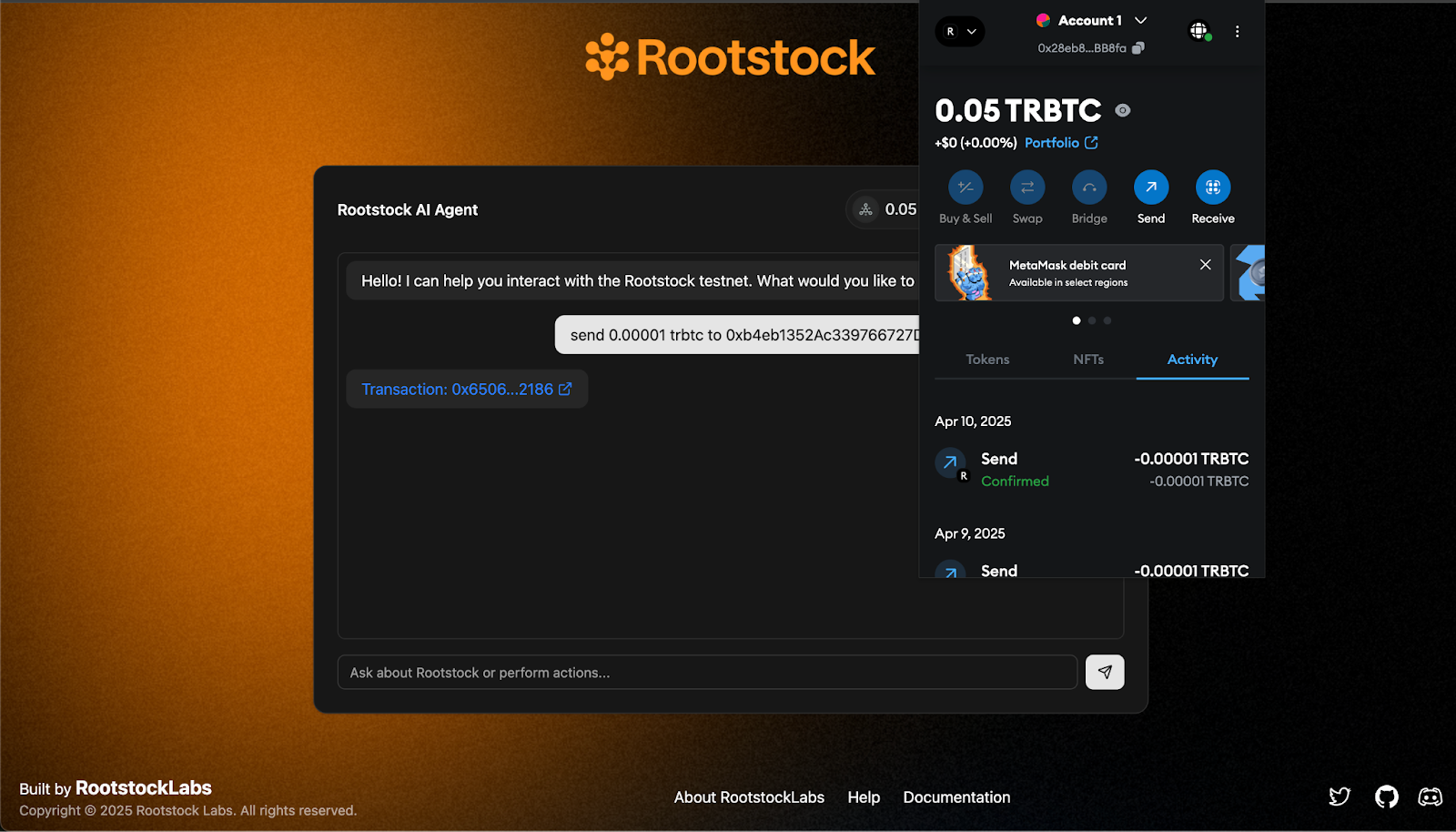

3. Transaction confirmation

Wrapping up

You built a conversational AI agent on Rootstock that interprets natural language and submits scoped on-chain actions. Balance checks and tRBTC transfers run through the chat interface and defined tool handlers.

✨ This tutorial was inspired by BitMate, a project originally built for a Web3 hackathon exploring how AI and decentralized infrastructure can work hand in hand.

You can find the full source code of this tutorial in the 🔗 AI Agents Rootstock GitHub repo Feel free to clone it, fork it, and build further on it.
